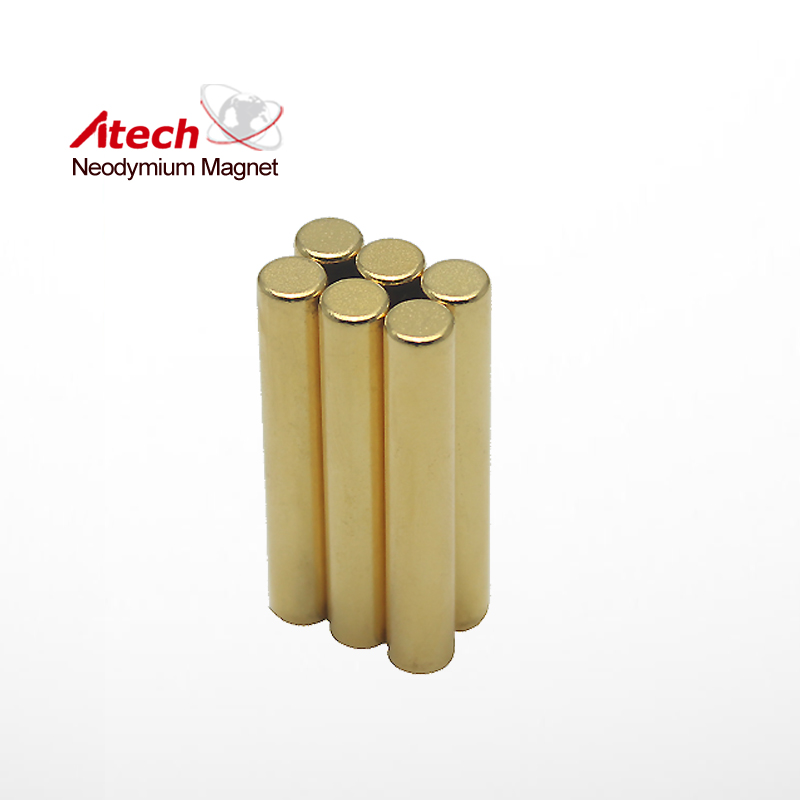

Gold Coated N42H Neodymium Magnet Cylinder

Similar Products

Cylinder Magnets N52 Super Strong Magnet 1/2 inch x1/2 inch Round Magnets For Sale SKU Code:ATECHDI014 Dimensions: D1/2""x1/2"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N52Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 12 gBr Max/Gauss rating: 14800 GSMax Ope...
Cylinder Magnet N52 3/8” SKU Code: ATECHDI005 Dimensions: D3/8""x1/2"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N52Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 7.7 gBr Max/Gauss rating: 14800 GSMax ...
Circle Magnet 1/2 SKU Code: ATECHDI010 Dimensions: D1/2""x1/8"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 8 gBr Max/Gauss rating: 13200 GSMax Ope...

Material	NdFeB
Grade	N42H
Remanence Br（kGs）	Max:13.2 Min:12.8
Plating	Au-Cu-Au (Gold)
Shape	Cylinder
Coercive force(kOe) Min.	12
Intrinsic Coercive force (kOe) Min.	17
Max energy product (MGOe)	Max:43 Min:40
Max Temp (℃)	120

Application Area
