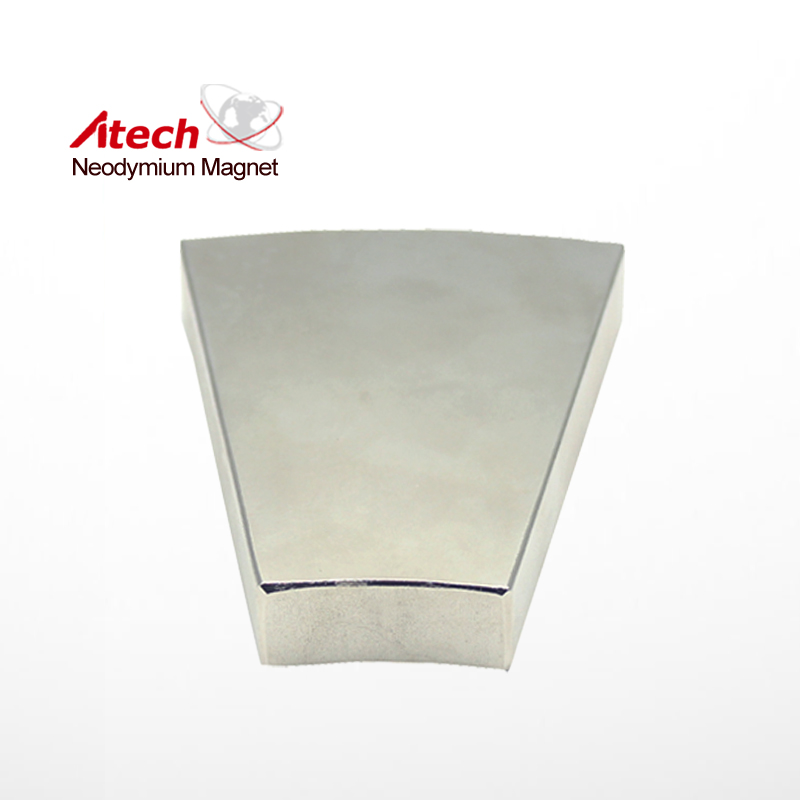

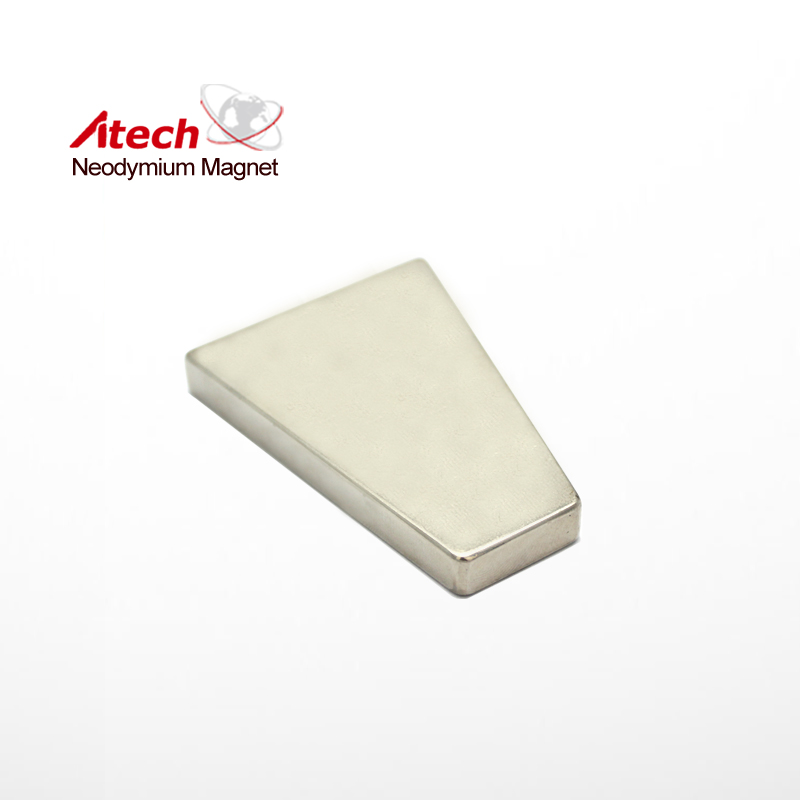

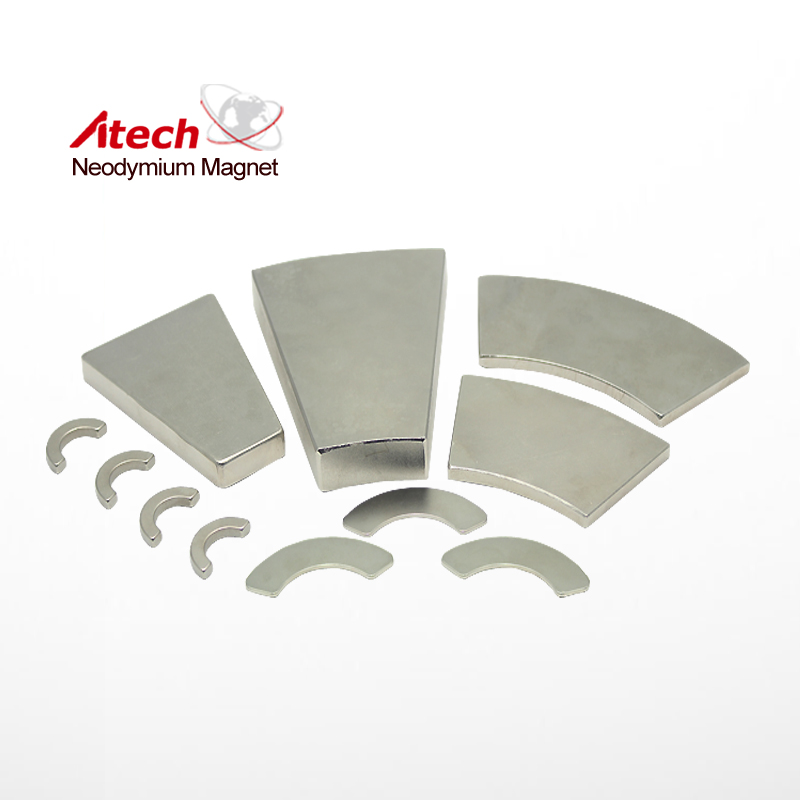

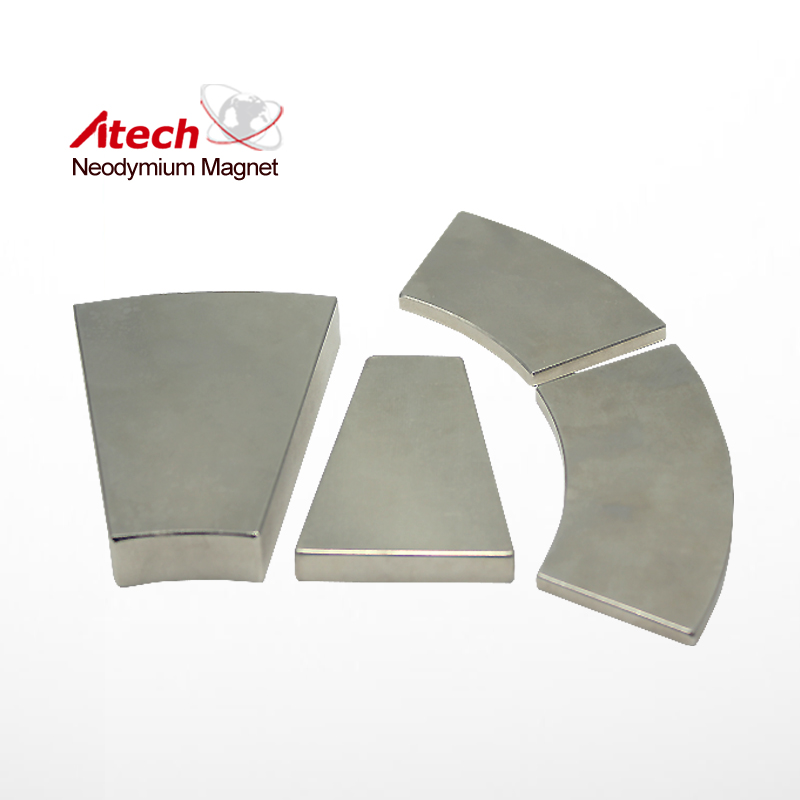

Nickel Coated N33H Neodymium Magnet Segment

Similar Products

1/4 inch x1/2 inch x3/16 inch Square Magnet Large Magnet N42 SKU Code: ATECHBL002 Dimensions: 1/4""x1/2""x3/16"" Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: through the thicknessWeight: 25 gBr Max/Gauss ratin...
Nickel Coated N33H Neodymium Magnet Disc Nickel Coated N33H Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated...
2/3“x3/4”x3/8“ Countersunk Block Magnet #6 Screw N42 Neodymium Permanent Magnet SKU Code:ATECHBL017 Dimensions: 2/3"x3/4"x3/8" Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: through the thicknessWeight:45 gBr Max/Gauss rating：13200 GS...

Material	NdFeB
Grade	N33H
Remanence Br（kGs）	Max:11.7 Min:11.3
Plating	Ni-Cu-Ni (Copper)
Shape	Segment
Coercive force(kOe) Min.	10.5
Intrinsic Coercive force (kOe) Min.	17
Max energy product (MGOe)	Max:31 Min:28
Max Temp (℃)	120

Application Area
