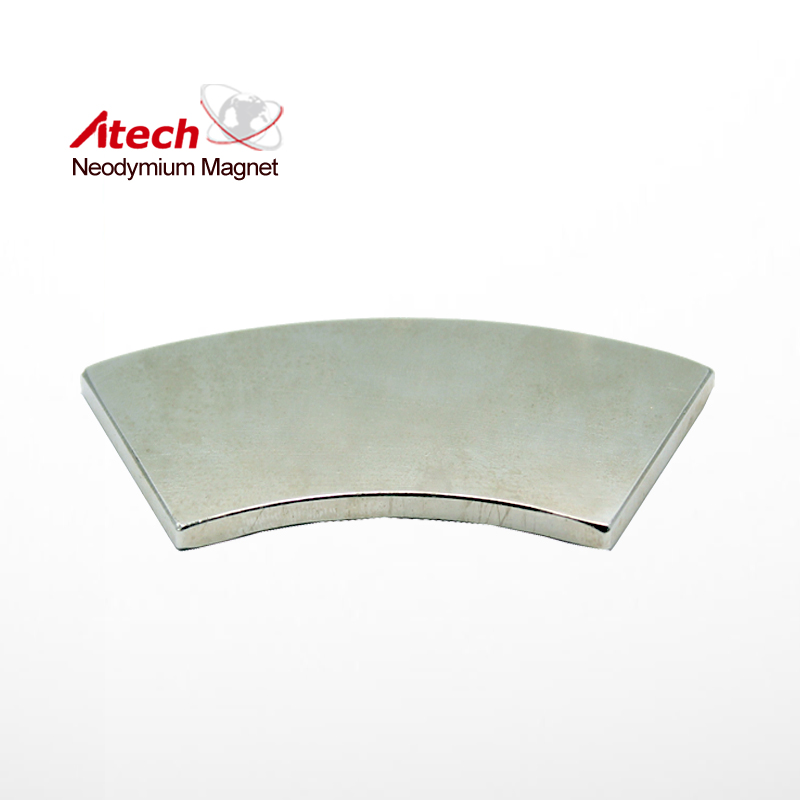

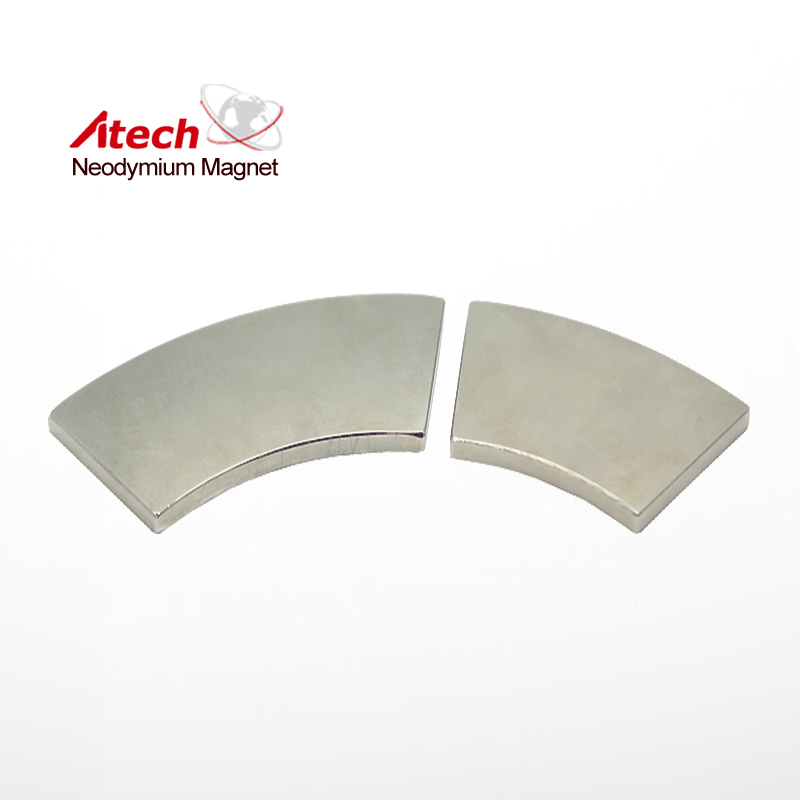

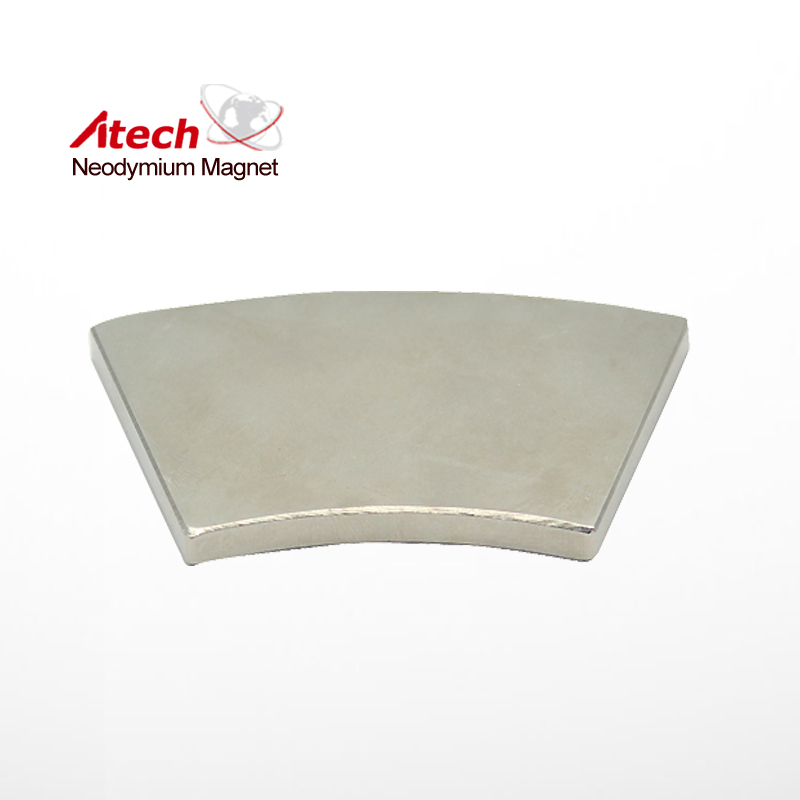

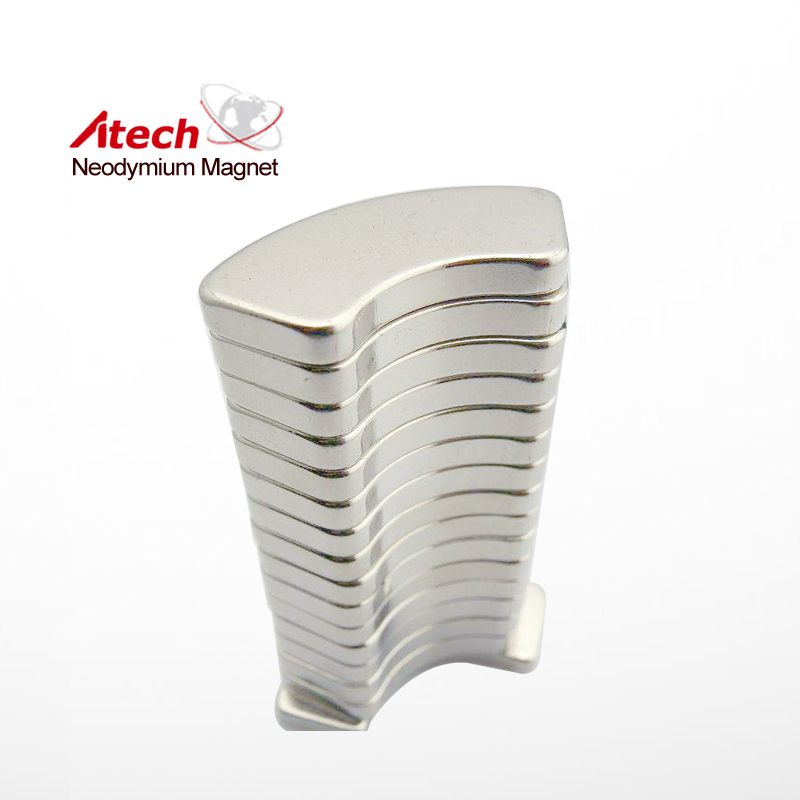

Nickel Coated N33M Neodymium Magnet Segment

Similar Products

Nickel Coated N40 Neodymium Magnet Arc MaterialNdFeBGradeN40Remanence Br（kGs）Max:12.8Min:12.5PlatingNi-Cu-Ni (Nickel)ShapeARCCoercive force(kOe) Min.10.9Intrinsic Coercive force (kOe) Min.12Max energy product (MGOe)Max:41Min:38Max Temp (℃)80
Large Magent 1 inch x1/2 inch x1/4 inch N42 Square Magnet Conveyor Belt Magnet SKU Code: ATECHBL015 Dimensions: 1"" x1/2"" x1/4"" Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: through the thicknessWeight: 125 gBr Max/Gauss rati...
Nickel Coated N35 Neodymium Magnet Cylinder MaterialNdFeBGradeN35Remanence Br（kGs）Max:12.2Min:11.7PlatingNi-Cu-Ni (Nickel)ShapeCylinderCoercive force(kOe) Min.10.9Intrinsic Coercive force (kOe) Min.12Max energy product (MGOe)Max:36Min:33Max Temp (℃)8...

Material	NdFeB
Grade	N33M
Remanence Br（kGs）	Max:11.7 Min:11.3
Plating	Ni-Cu-Ni (Copper)
Shape	Segment
Coercive force(kOe) Min.	10.5
Intrinsic Coercive force (kOe) Min.	14
Max energy product (MGOe)	Max:33 Min:31
Max Temp (℃)	100

Application Area
