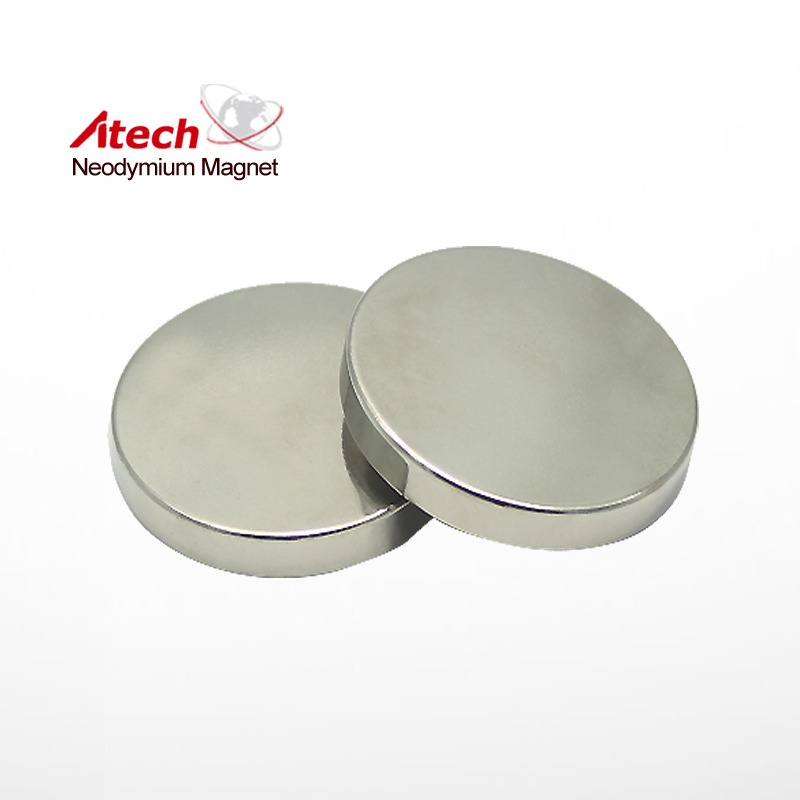

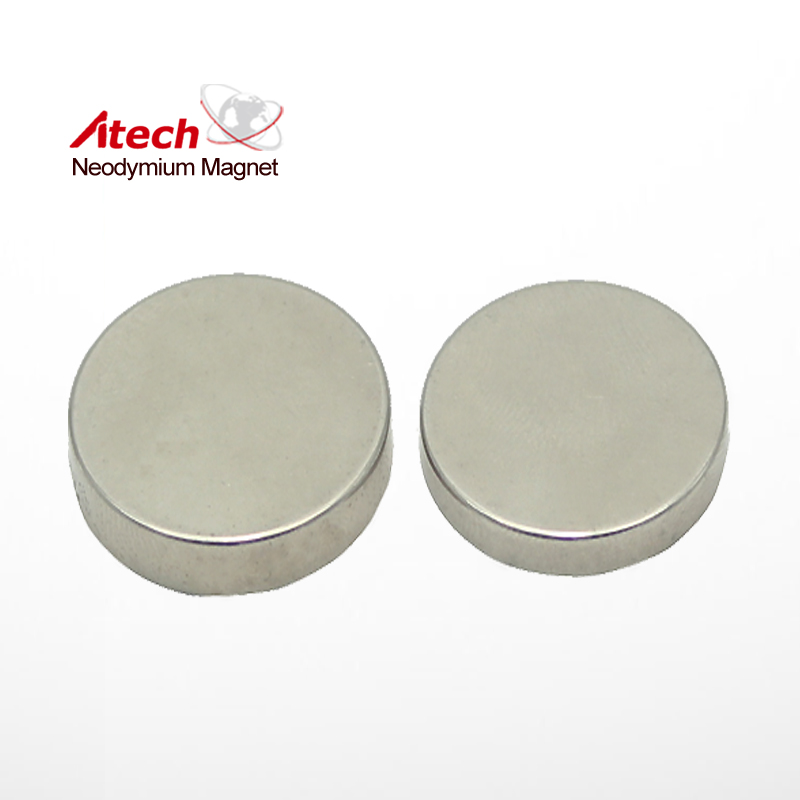

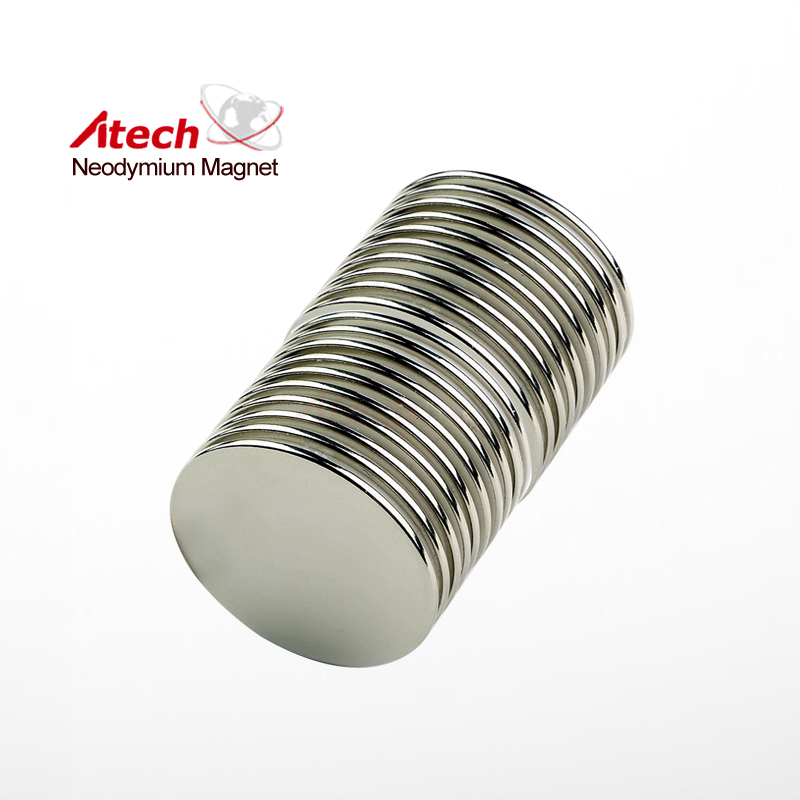

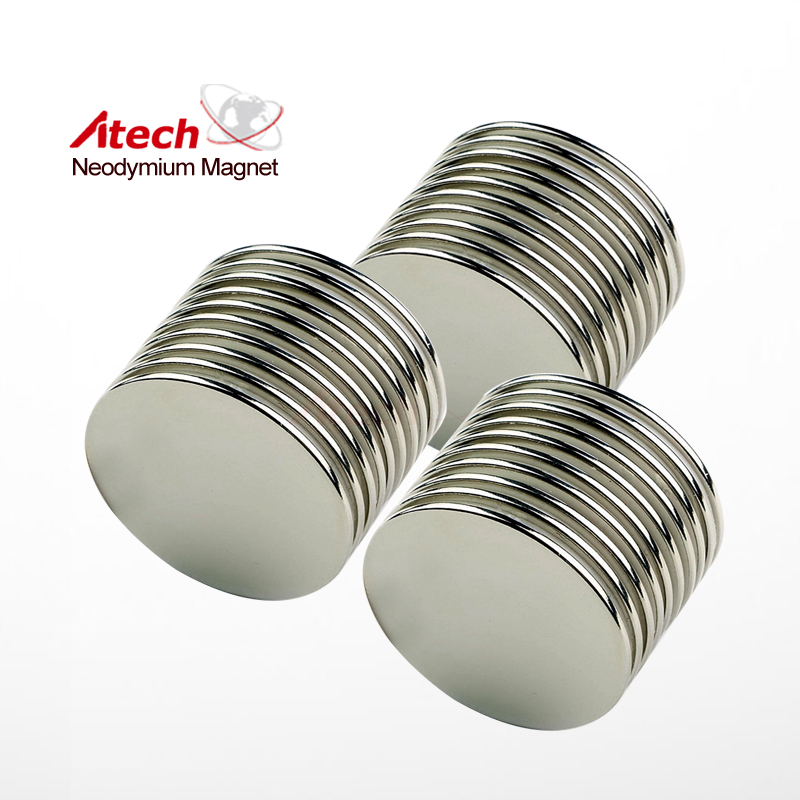

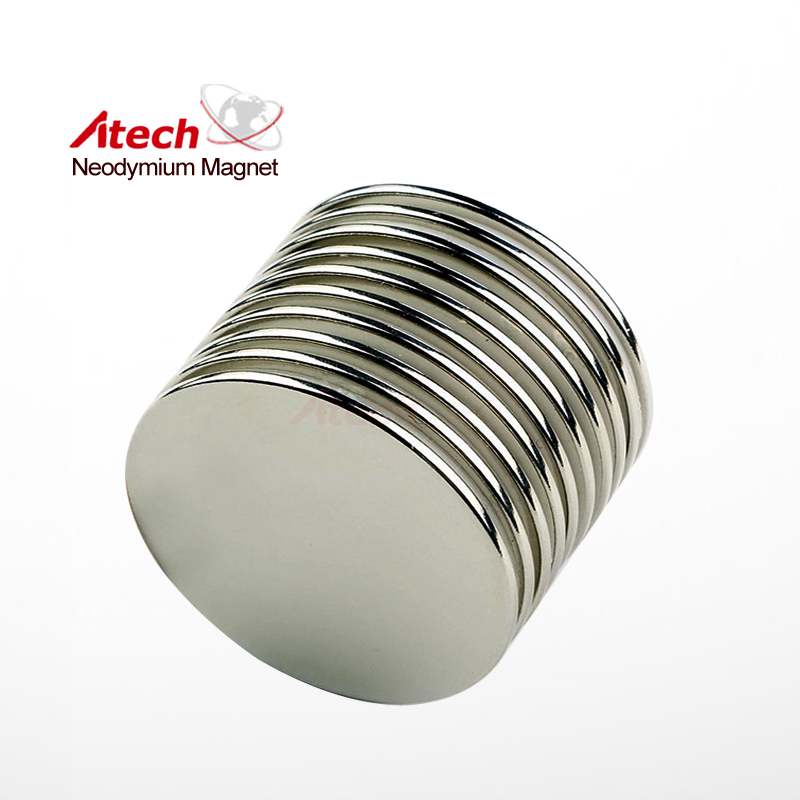

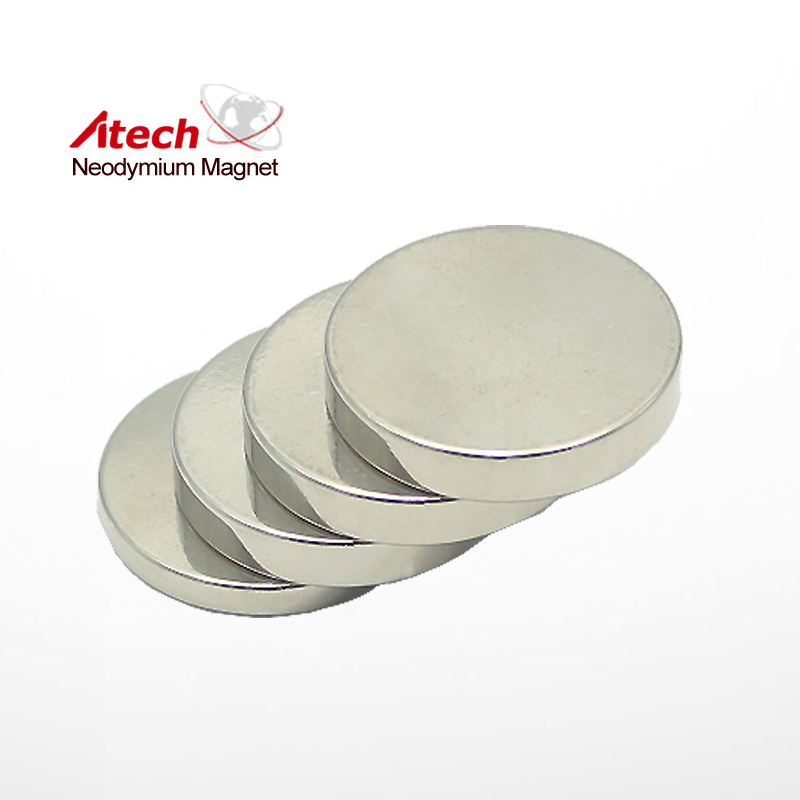

Nickel Coated N50 Neodymium Magnet Disc

Similar Products

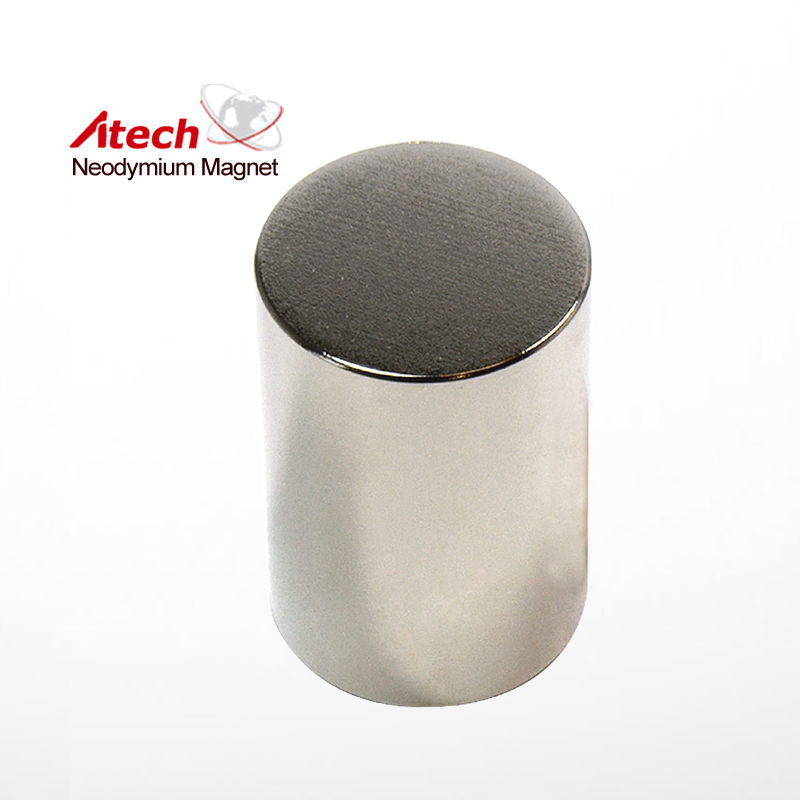

Nickel Coated N40 Neodymium Magnet Cylinder MaterialNdFeBGradeN40Remanence Br（kGs）Max:12.8Min:12.5PlatingNi-Cu-Ni (Nickel)ShapeCylinderCoercive force(kOe) Min.11.4Intrinsic Coercive force (kOe) Min.12Max energy product (MGOe)Max:41Min:38Max Temp (℃)8...
Nickel Coated N33M Neodymium Magnet Disc Nickel Coated N33M Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated...
Strong Round Magnet N42 3/8” "SKU Code: ATECHDI003 Dimensions: D3/8""x1/16"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 1.2 gBr Max/Gauss rating: 13200 GSMa...

Nickel Coated N50 Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated with 3 layers of protective coatings - Nickel + Copper + Nickel (Ni-Cu-Ni). The maximum operating temperature of Nickel Coated N50 Neodymium Magnet Disc is up to 80 degrees C.

Material	NdFeB
Grade	N50
Remanence Br（kGs）	Max:14.5 Min:14.0
Plating	Ni-Cu-Ni (Nickel)
Shape	Disc
Coercive force(kOe) Min.	10
Intrinsic Coercive force (kOe) Min.	11
Max energy product (MGOe)	Max:51 Min:48
Max Temp (℃)	80

Application Area
