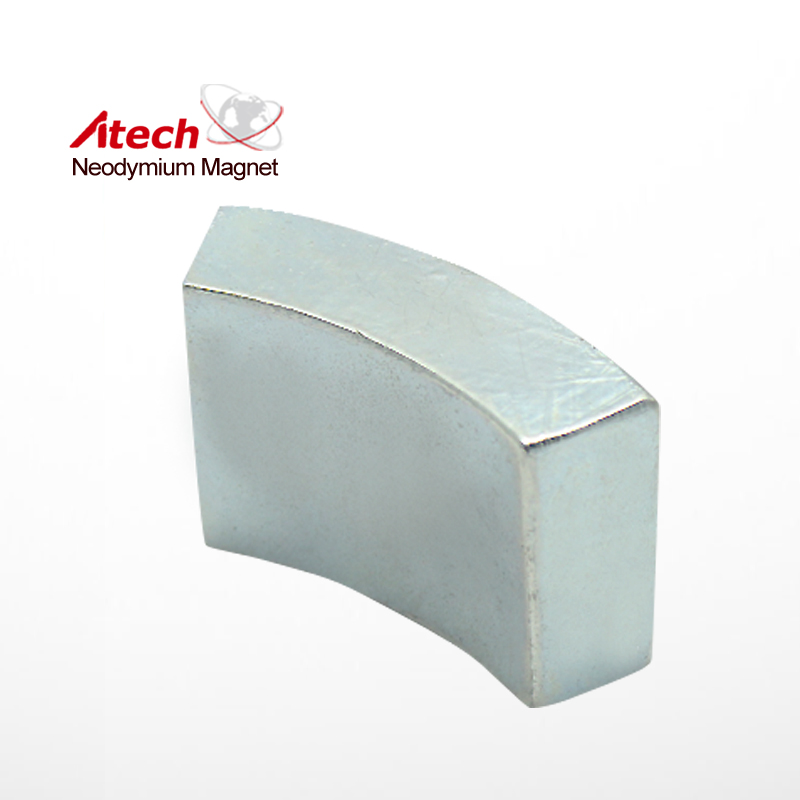

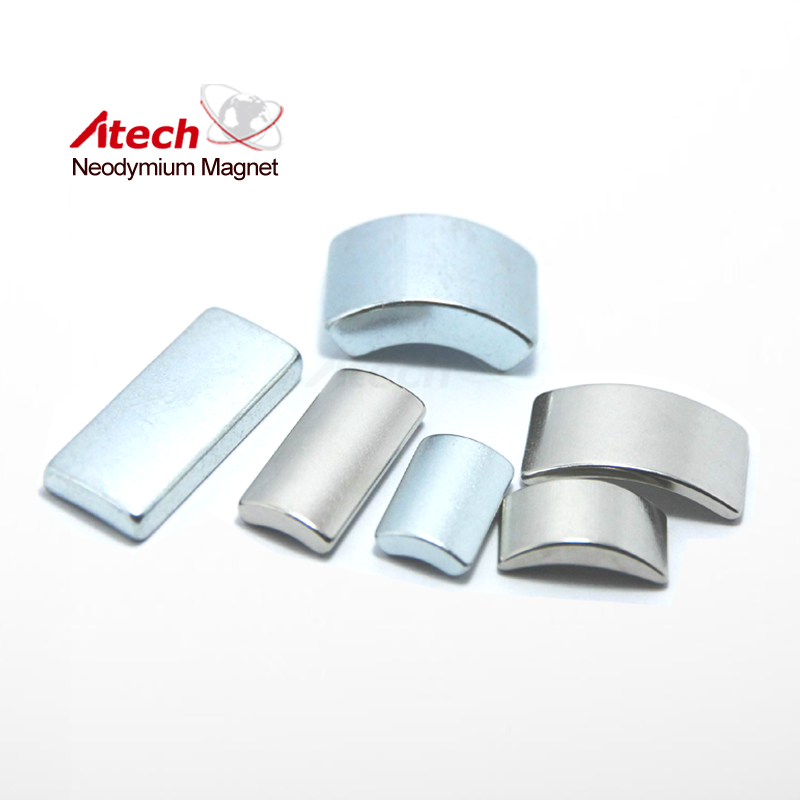

Zinc Coated N42M Neodymium Magnet Arc

Similar Products

Round Car Magnets N52 1/2 inch x1/10 inch Circle Magnet Disc SKU Code: ATECHDI009 Dimensions: D1/2""x1/10"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N52Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 8 gBr Max/Gauss rating: 14800 GSMax Op...

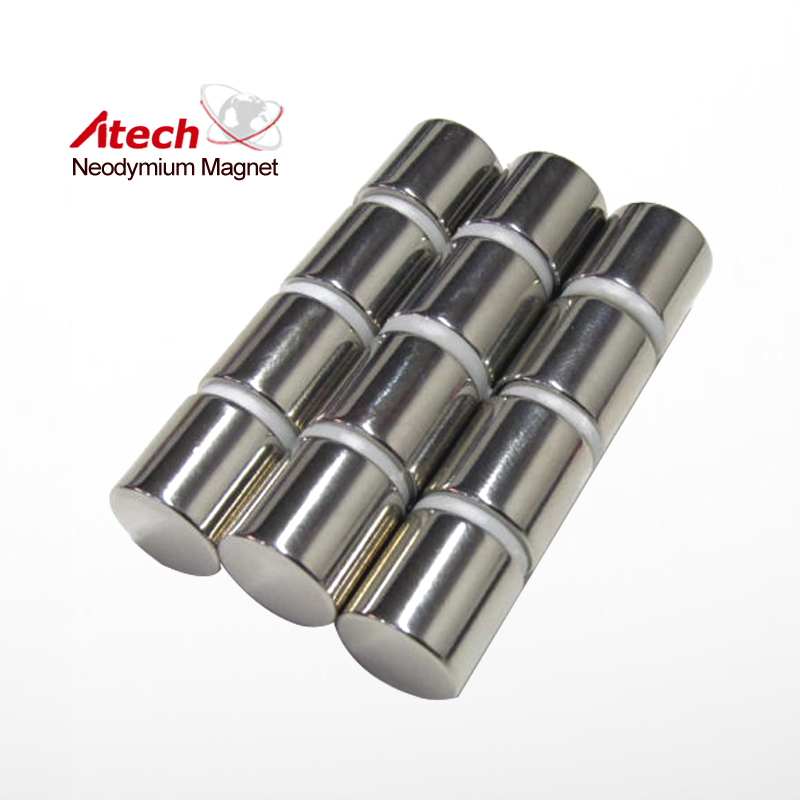

Nickel Coated N48 Neodymium Magnet Cylinder MaterialNdFeBGradeN48Remanence Br（kGs）Max:14.2Min:13.8PlatingNi-Cu-Ni (Nickel)ShapeCylinderCoercive force(kOe) Min.11.6Intrinsic Coercive force (kOe) Min.12Max energy product (MGOe)Max:49Min:46Max Temp (℃)8...
Generator Permanent Magnet 2/3 inch x1/2 inch x1/4 inch N42 Neodymium Block Magnet Magnetic Plate SKU Code: ATECHBL013 Dimensions: 2/3""x1/2""x1/4"" Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: through the thicknessWeight: 25 gBr Max/Gauss ratin...

Material	NdFeB
Grade	N42M
Remanence Br（kGs）	Max:13.2 Min:12.8
Plating	Zn-Cu-Zn (Zinc)
Shape	Arc
Coercive force(kOe) Min.	12
Intrinsic Coercive force (kOe) Min.	14
Max energy product (MGOe)	Max:43 Min:40
Max Temp (℃)	100

Application Area
