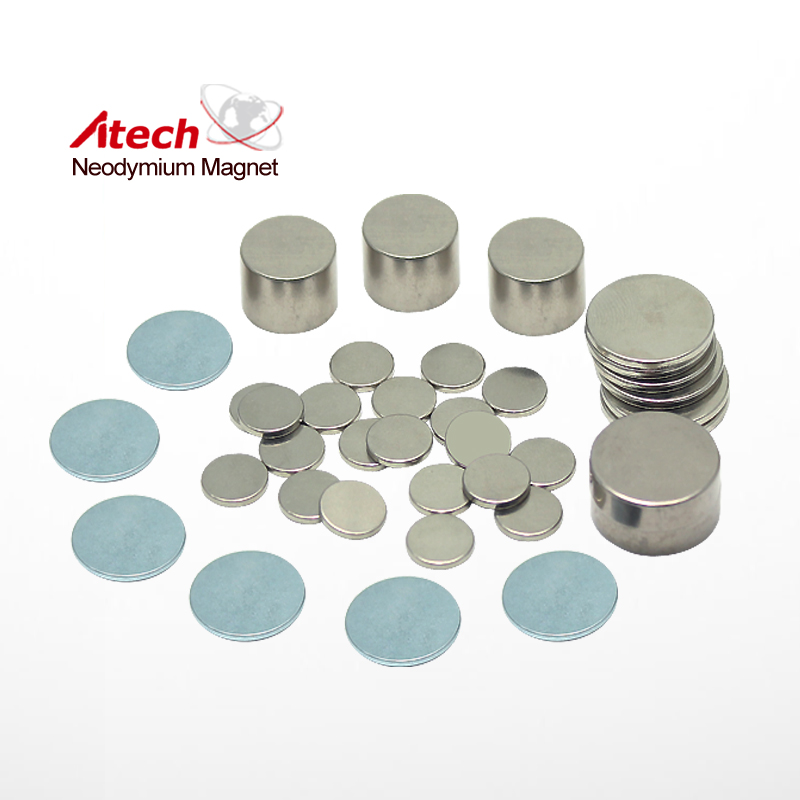

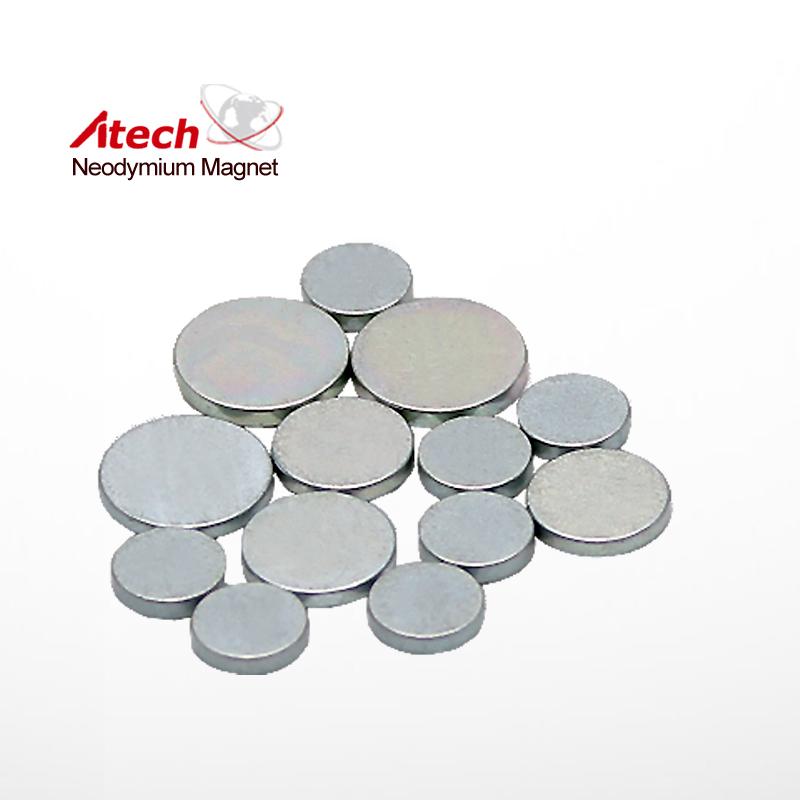

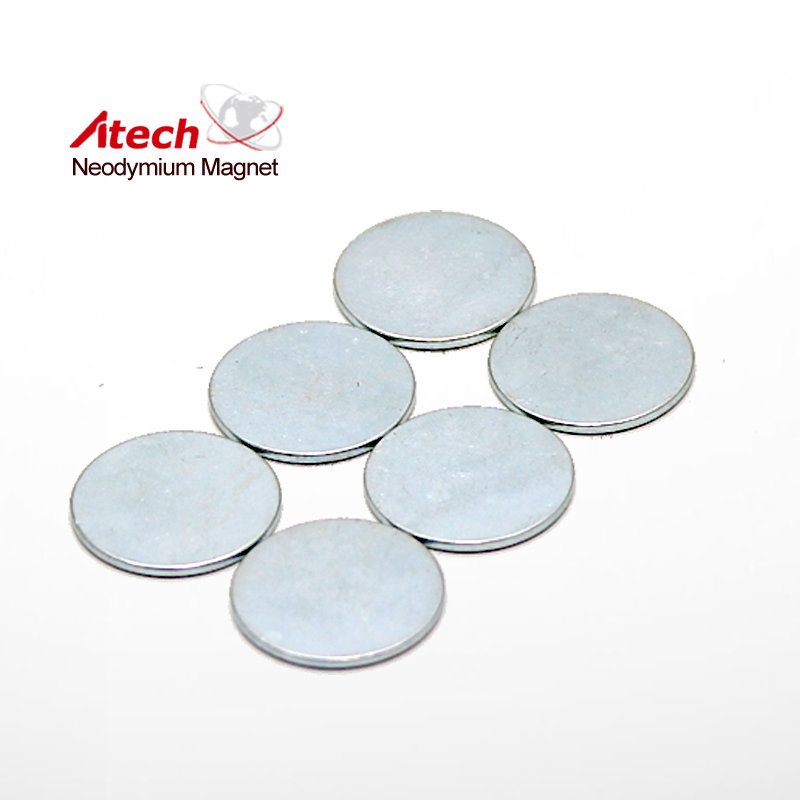

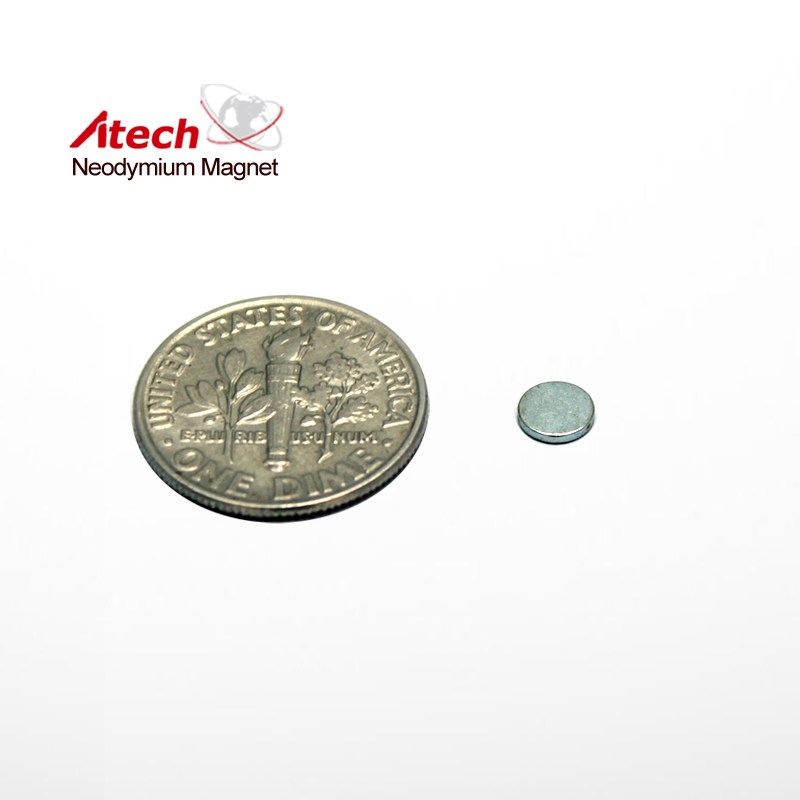

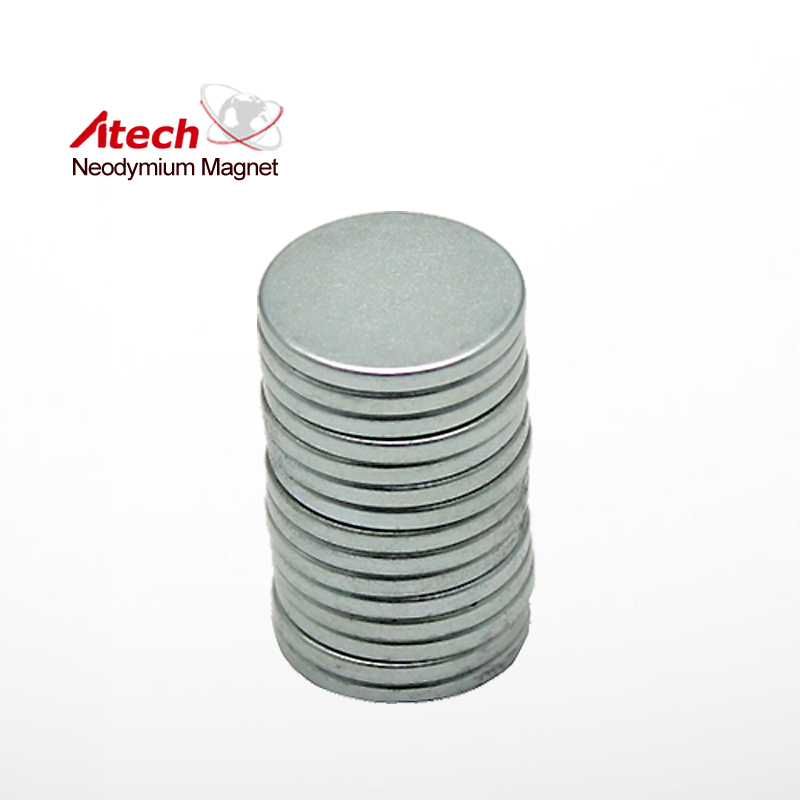

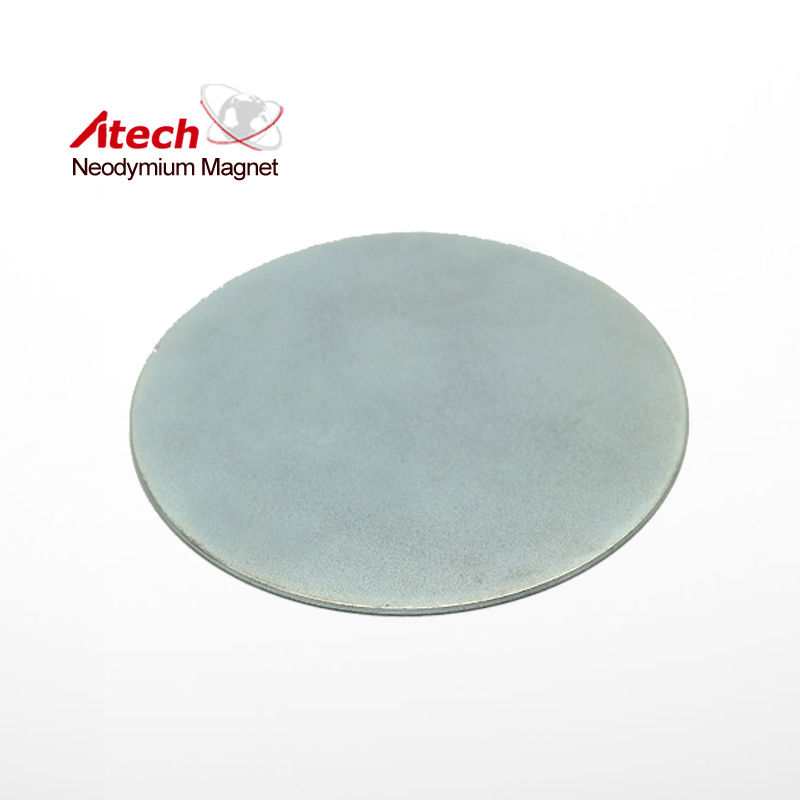

Zinc Coated N45H Neodymium Magnet Disc

Similar Products

Nickel Coated N35 Neodymium Magnet Disc Nickel Coated N35 Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated ...
Imanes De Neodimio 1 inch x 1 inch N52 Large Magnet Round SKU Code: ATECHDI025Dimensions: D1""x 1""Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N52Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 50 gBr Max/Gauss rating: 14800 GSMax Operati...
Grade N42 Neodymium Disc Magnets D10*3mm SKU Code: ATECHDI001 Dimensions: D10 * 3mm Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 0.480 gBr Max/Gauss rating: 13200 GSMax O...

Zinc Coated N45H Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated with 3 layers of protective coatings - Zinc + Copper + Zinc (Zn-Cu-Zn). The maximum operating temperature of Zinc Coated N45H Neodymium Magnet Disc is up to 120 degrees C.

Material	NdFeB
Grade	N45H
Remanence Br（kGs）	Max:13.7 Min:13.2
Plating	Zn-Cu-Zn (Zinc)
Shape	Disc
Coercive force(kOe) Min.	12.1
Intrinsic Coercive force (kOe) Min.	17
Max energy product (MGOe)	Max:46 Min:43
Max Temp (℃)	120

Application Area
