Nickel Coated N38M Neodymium Magnet Disc

Similar Products

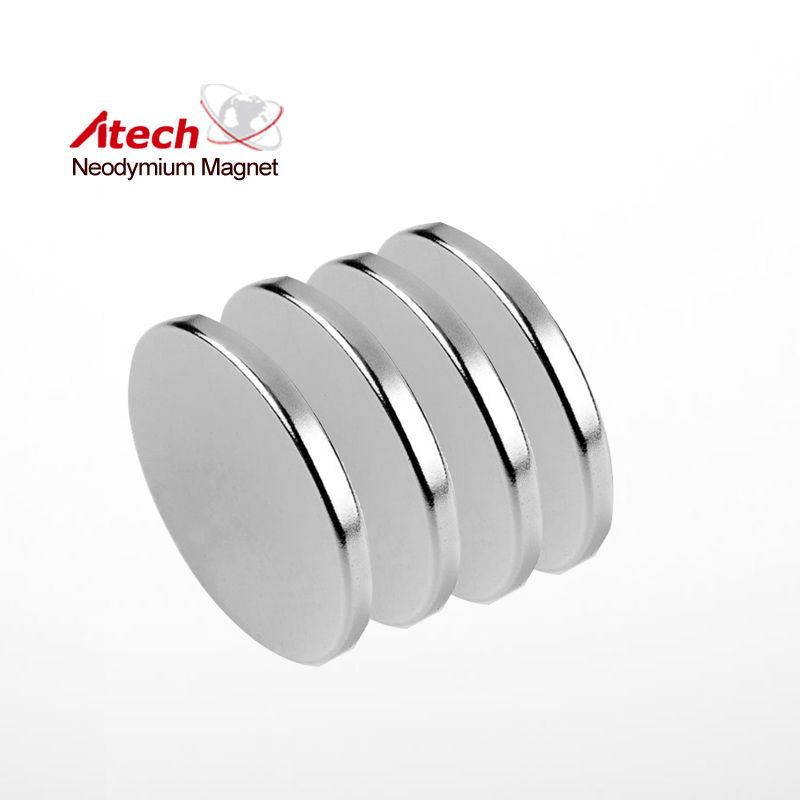

Nickel Coated N33M Neodymium Magnet Disc Nickel Coated N33M Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated...
Gold Coated N42H Neodymium Magnet Cylinder MaterialNdFeBGradeN42HRemanence Br（kGs）Max:13.2Min:12.8PlatingAu-Cu-Au (Gold)ShapeCylinderCoercive force(kOe) Min.12Intrinsic Coercive force (kOe) Min.17Max energy product (MGOe)Max:43Min:40Max Temp (℃)120
Nickel Coated N38 Neodymium Magnet Cylinder MaterialNdFeBGradeN38Remanence Br（kGs）Max:12.5Min:12.2PlatingNi-Cu-Ni (Nickel)ShapeCylinderCoercive force(kOe) Min.11.3Intrinsic Coercive force (kOe) Min.12Max energy product (MGOe)Max:39Min:36Max Temp (℃)8...

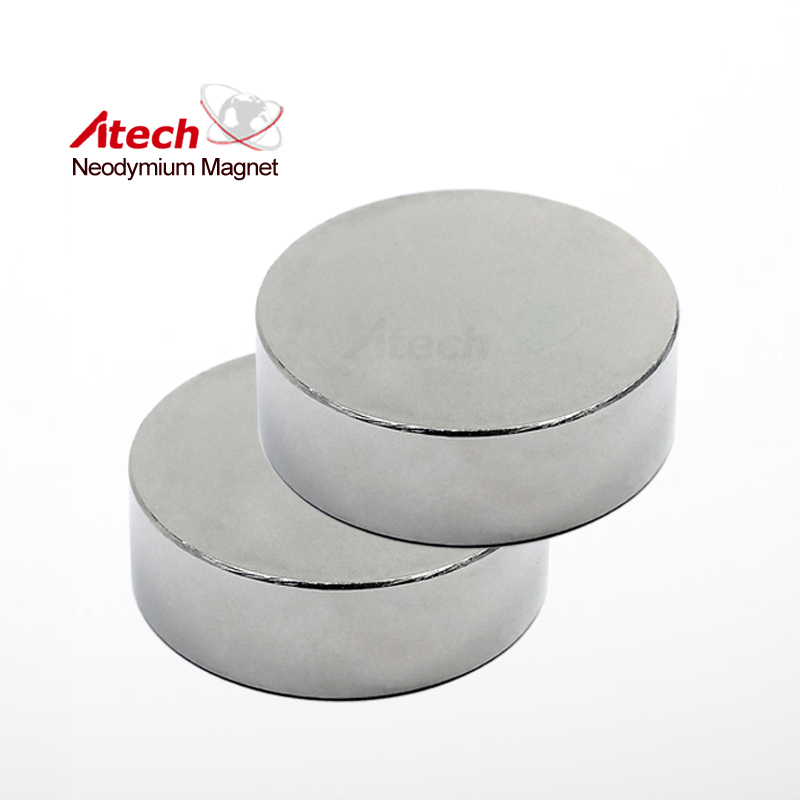

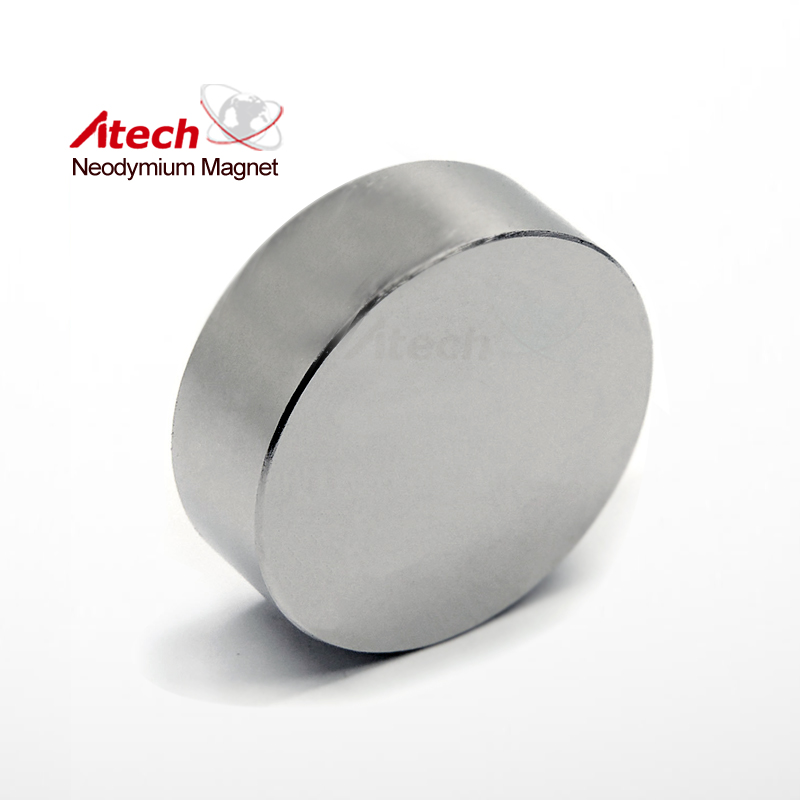

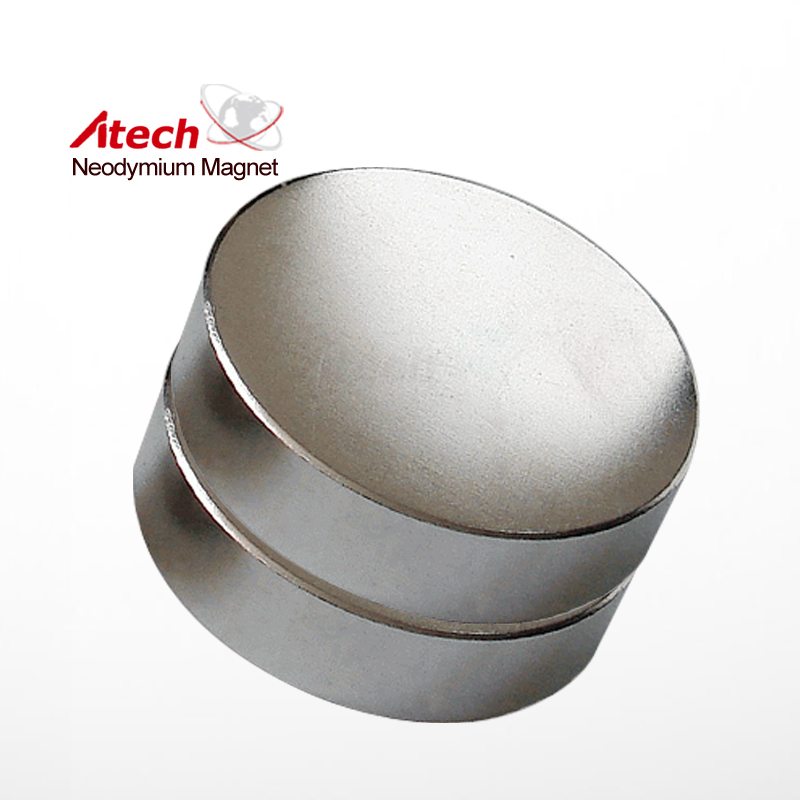

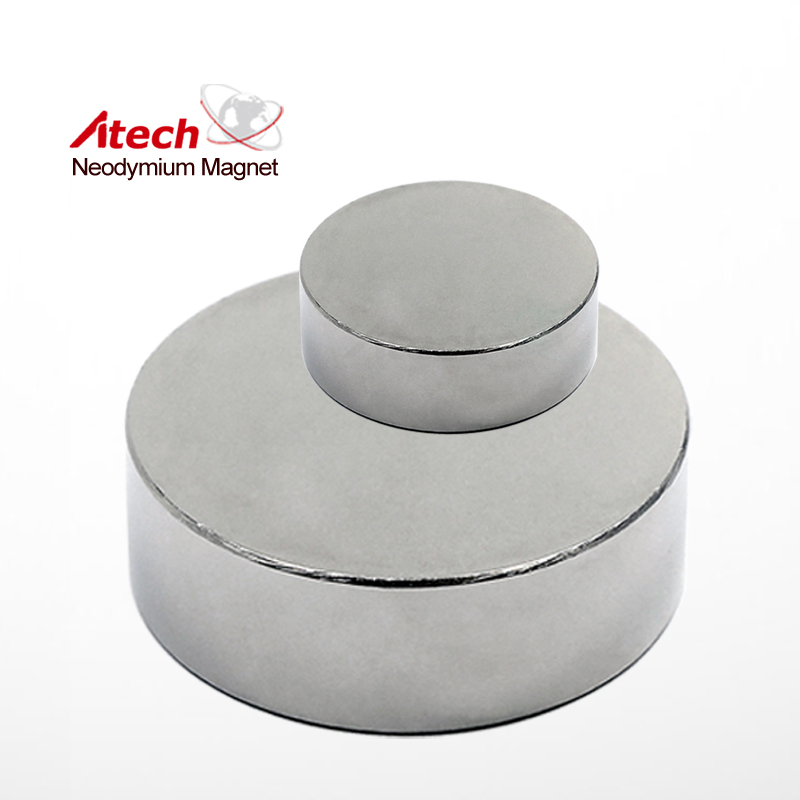

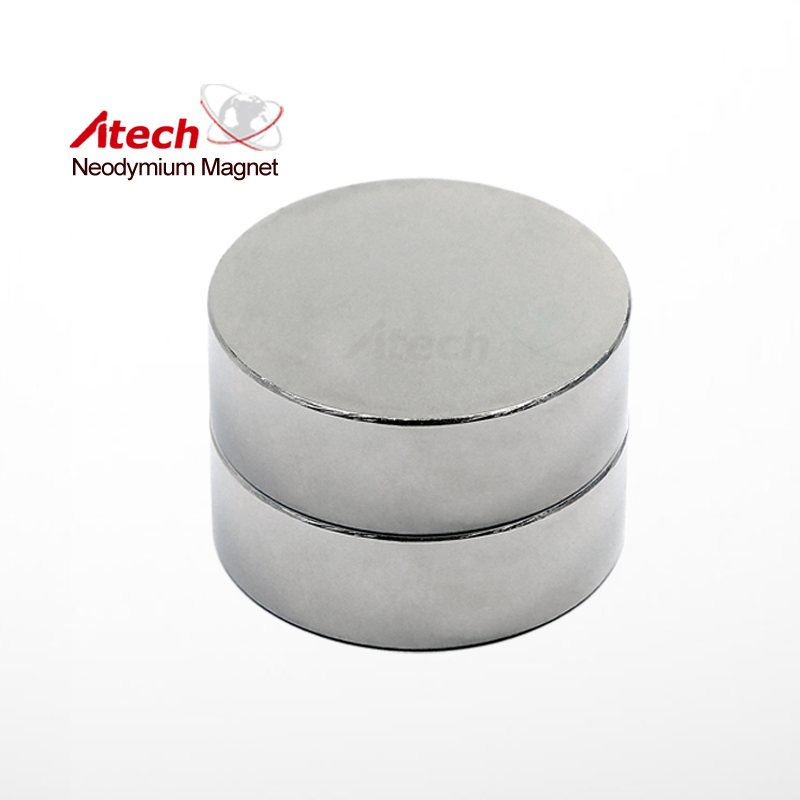

Nickel Coated N38M Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated with 3 layers of protective coatings - Nickel + Copper + Nickel (Ni-Cu-Ni). The maximum operating temperature of Nickel Coated N38M Neodymium Magnet Disc is up to 100 degrees C.

Material	NdFeB
Grade	N38M
Remanence Br（kGs）	Max:12.5 Min:12.2
Plating	Ni-Cu-Ni (Nickel)
Shape	Disc
Coercive force(kOe) Min.	11.3
Intrinsic Coercive force (kOe) Min.	14
Max energy product (MGOe)	Max:39 Min:36
Max Temp (℃)	100

Application Area
