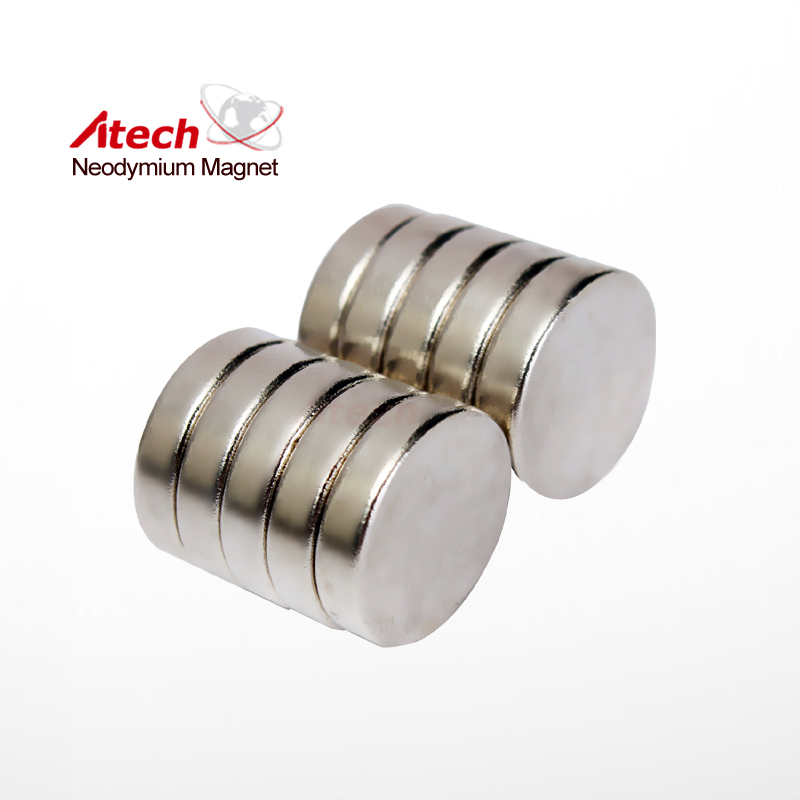

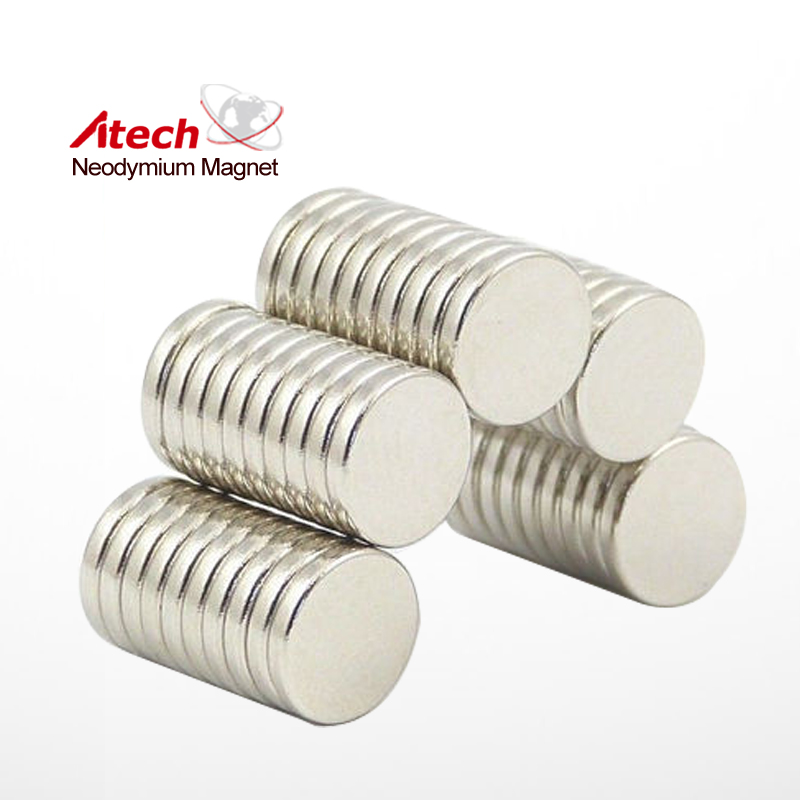

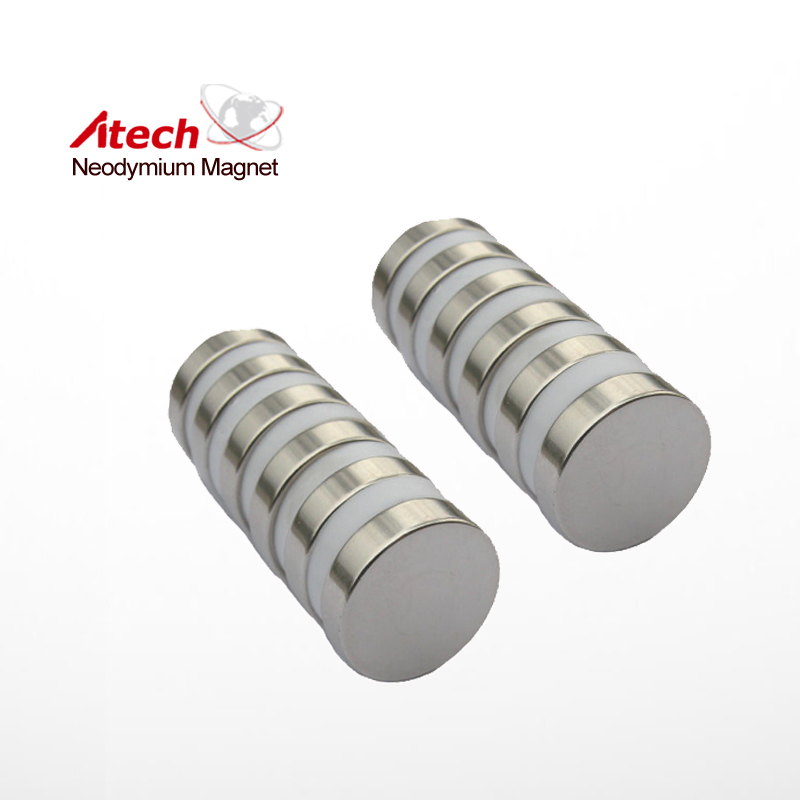

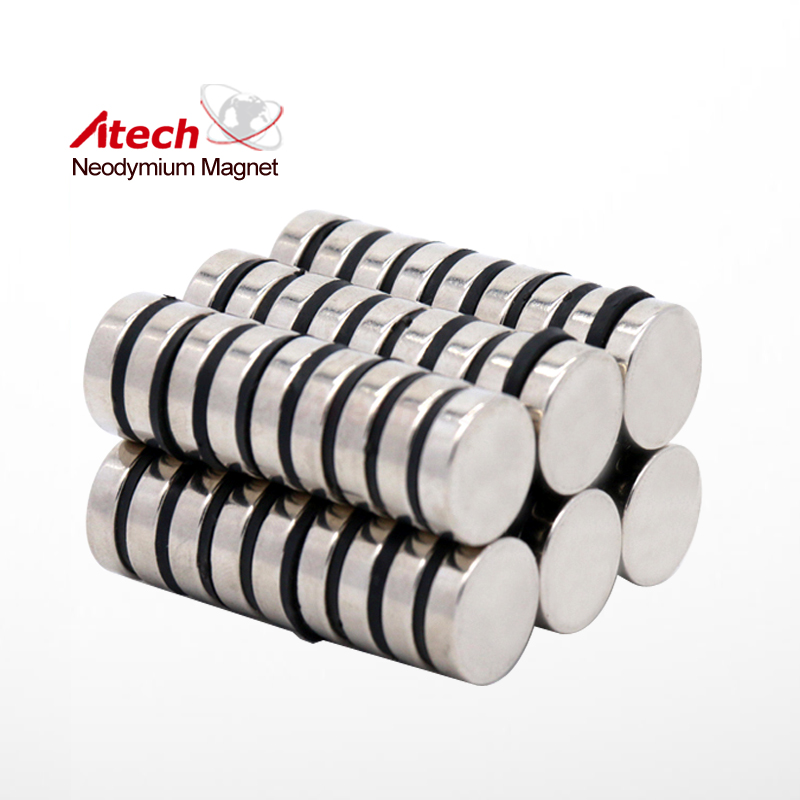

Nickel Coated N48 Neodymium Magnet Disc

Similar Products

Industrial Magnet N42 1/2 SKU Code:ATECHDI012 Dimensions: D1/2"x1/4" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 16 gBr Max/Gauss rating：13200 GSMax Operating ...
Round Magnet N42 1/2 inch x1/16 inch Industrial Magnets For Sale SKU Code: ATECHDI007 Dimensions: D1/2""x1/16"" Thick Tolerances: ±0.05mmMaterial: NdFeB, Grade N42Plating/Coating: Ni-Cu-NiMagnetization Direction: AxialWeight: 1.7 gBr Max/Gauss rating: 13200 GSMax...
Nickel Coated N38M Neodymium Magnet Disc Nickel Coated N38M Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated...

Nickel Coated N48 Neodymium Magnet Disc is made from high performance Neodymium Iron Boron. The NORTH pole is on one circular face and the SOUTH pole is on the opposite face. These Magnets are plated with 3 layers of protective coatings - Nickel + Copper + Nickel (Ni-Cu-Ni). The maximum operating temperature of Nickel Coated N48 Neodymium Magnet Disc is up to 80 degrees C.

Material	NdFeB
Grade	N48
Remanence Br（kGs）	Max:14.2 Min:13.8
Plating	Ni-Cu-Ni (Nickel)
Shape	Disc
Coercive force(kOe) Min.	11.6
Intrinsic Coercive force (kOe) Min.	12
Max energy product (MGOe)	Max:49 Min:46
Max Temp (℃)	80

Application Area
